RETRACTABLE PRIVACY CAR CURTAINS FOR HONDA FIT MODEL 2016 TO 2020
Rs 7500.00Rs 5500.00
Retractable privacy car curtains and custom window shades designed for the 3rd Generation Honda Fit / Jazz (GK chassis, 2016–2020 models, including LX, EX, EX-L, Sport, and Hybrid GP5/GP6 variants) provide essential interior solar heat defense, UV glare protection, and complete cabin privacy tailored to the hatchback's tall glass setup.

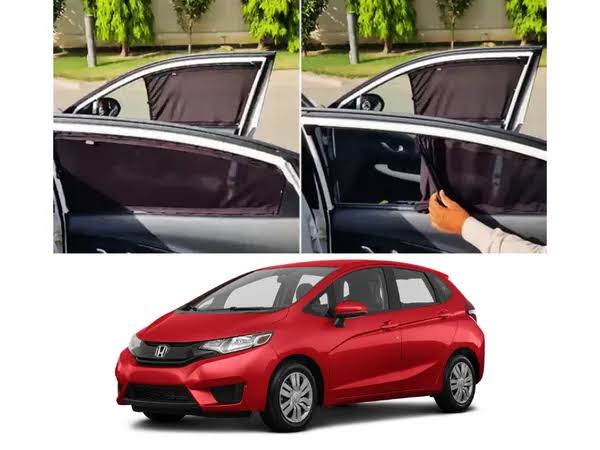

Custom window shade fitting for Honda Fit GK (2016–2020). Source: Pakwheels
Popular Types for Honda Fit (2016–2020)
Custom Fit Magnetic Mesh Shades (Most Popular)
Mounting: Built-in high-strength neodymium magnets snap directly onto the inner exposed steel door frame outline of the GK chassis.
Operation: Tool-free press-fit attachment or magnetic removal in under 3 seconds per window; stays securely in place when lowering power windows for fresh airflow.
Best For: Instant solar heat protection, lowering A/C load to conserve battery efficiency on Fit Hybrid models, and keeping out direct glare and insects.
Rail Track Sliding VIP Curtains
Mounting: Precision flexible polymer or aluminum track rails attached to the upper and lower inner door trim using heat-resistant 3M double-sided acrylic adhesive tape.
Operation: Fabric glides horizontally on micro-runners and fastens neatly to B/C pillars using tie-back straps when pulled open.
Best For: Complete blackout interior privacy, maximum cabin thermal insulation, and a classic executive VIP aesthetic.
Spring-Loaded Roller Retractable Shades
Mounting: Secures along the lower door panel sill or clips directly onto the upper edge of the window glass frame.
Operation: Automatically unrolls and retracts in sync with power window glass movement.
Best For: Streamlined daily convenience without manual fabric sliding or handling.
Technical Specifications & Fitment
Feature | Details |
|---|---|
Compatible Models | Honda Fit / Jazz 3rd Gen (GK3, GK4, GK5, GK6 & Hybrid GP5, GP6; 2016–2020) |
Fabric Options | UV-reflective honeycomb polyester mesh or high-density double-layered opaque stretch fabric |
Front Window Cutout | Tapered half-cut profile ensuring completely unobstructed side mirror and blind-spot visibility |
Rear & Quarter Glass | Precision-cut to accommodate the rear passenger doors and rear quarter glass pillars |
Window Usability | Full power window roll-down operation remains completely functional |
Installation Sequence for Rail Track Curtains
1
Clean and Prep Window Frame
Critical for long-term 3M tape adhesion on hatchback door plastics
1.Clean and Prep Window Frame:Critical for long-term 3M tape adhesion on hatchback door plastics.
Wipe down the inner plastic window surround using isopropyl alcohol to eliminate interior silicone dressings, wax, and fine dust particles.
2
Dry-Fit Rail Tracks
Match top and bottom tracks to the GK door arch
2.Dry-Fit Rail Tracks:Match top and bottom tracks to the GK door arch.
Hold the upper and lower track rails against the door frame arch to verify exact alignment, check end-cap clearance, and ensure smooth glass travel.
3
Mount Track Rails
Apply firm, even pressure along the entire length
3.Mount Track Rails:Apply firm, even pressure along the entire length.
Peel the 3M tape backing, press the tracks firmly against the window frame for 30 seconds per section, and allow 2 to 4 hours to cure before hanging fabric weight.
4Insert Gliders & Lock End Caps
Prevents curtain gliders from sliding out
4.Insert Gliders & Lock End Caps:Prevents curtain gliders from sliding out.
Thread the fabric curtain runners into the rail channels, check for smooth sliding action, and snap the rubber stoppers onto both ends of each rail.
